Home > Yamaha Pick and place machine

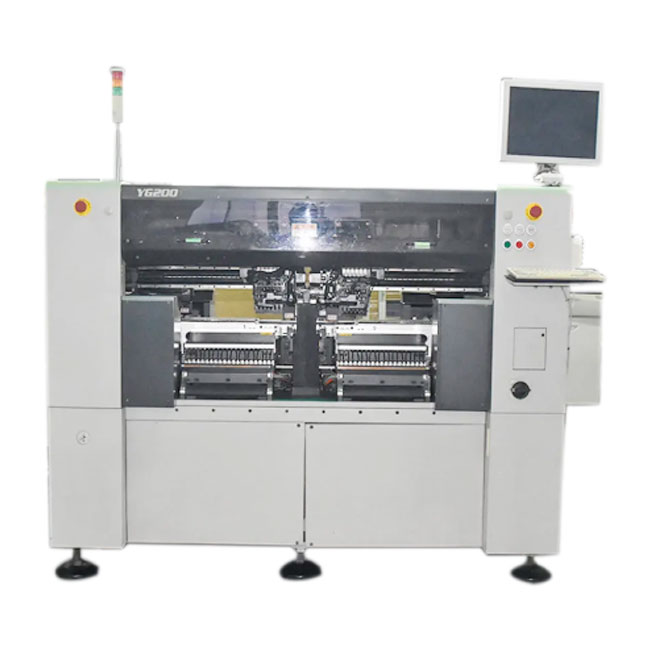

  • Yamaha YG200 Pick and Place Machine
Yamaha YG200 Pick and Place Machine

Yamaha YG200 Pick and Place Machine

  • Yamaha YG200 Chip Mounter
  • Patch speed 45,000CPH
  • L1,950×W1, 408 ×H1, 450mm
  • Weight approx. 2080kg
  • Product description: Yamaha YG200 Pick and Place Machine, Patch speed 45,000CPH, Dimension:L1,950×W1, 408 ×H1, 450mm, Weight approx. 2080kg
  • INQUIRY

Yamaha YG200 Pick and Place Machine

Machine Details:


The price of Yamaha YG200 Chip mounter(used) : USD 38000

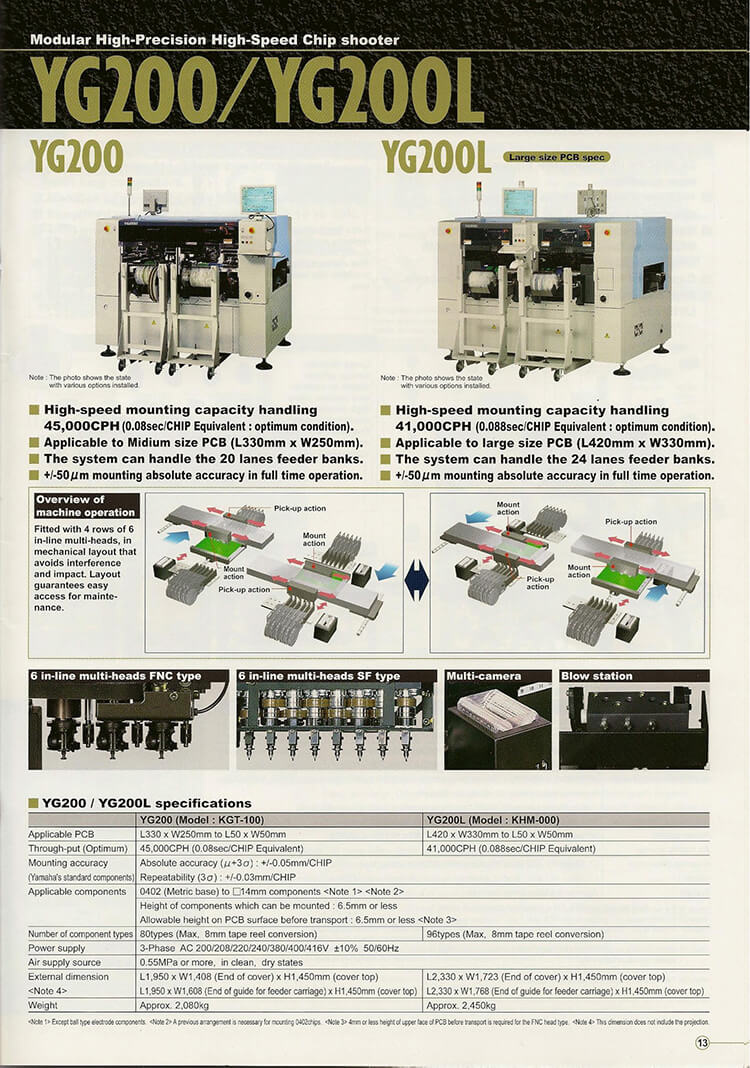

Key Specifications/Special Features:

High speed chip shooter Yamaha YG200 (Model : KGT-100)
Applicable PCB: L330×W250mm to L50×W50mm
Through-put (Optimum): 45,000CPH(0.08sec/CHIP equivalent)
Mounting accuracy: (Yamaha's standard components)
Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, repeatability(3σ): +/-0.03mm/CHIP
Applicable components: 0402 (Metric base)to 14*mm components
Height of components which can be mounted: 6.5mm or less
Allowable height on PCB surface before transport 6.5mm or less
Number of component types: 80 types(Max, 8mm tape reel conversion)

Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%
50/60HzAir supply source 0.55MPa or more, in clean, dry states

External dimension, 950×W1, 408(End of cover)×H1, 450mm (cover top) L1, 950×W1, 608

(End of guide for feeder carriage)×H1, 450mm (cover top)

Weight approx. 2080kg

If you are looking for Yamaha placement or other brand placement machine,Pls contact us directly.

Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine, Hanwha SM482 Plus Pick and Place Machine, SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

QITUO SMT provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8617748683433, Skype: qismteric, Email:   sales@qismt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
b If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible )
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5) Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price !; Best shipping !; Best service !
